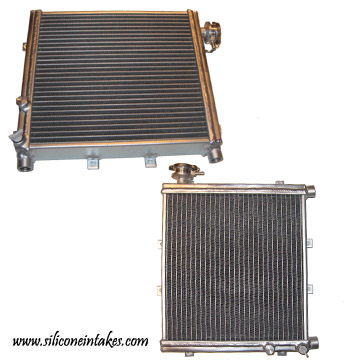

Water to Air Intercooler Radiator - 12x12x2 (Type 117)

WAT001062 by Shaman Equipment

Retail Price: $299.99
You Save $130.00 (43%)

PRICE: $169.99

Out Of Stock - Check back soon or join our waitlist!

These radiators are designed specifically for use in air to water intercooler applications.

  • Two inches thick, they cool water as close to ambient temperature as possible and are easy to mount in tight locations.
  • With eight strategically placed mounting points, they are easily mountable with the water inlet and outlet on either the left or the right.
  • All aluminum construction provides maximum cooling with water or antifreeze/coolant.
  • Water inlet and outlet are 1/2" NPT female threads, just like most air to water intercoolers.
  • These radiators feature a fill/pressure cap on top and a drain plug on the bottom for incredible installation flexibility.
  • In case you wish to include a water temperature gauge in your installation, these radiators feature a 1/8-27 NPT tap for a temperature sending unit. They ship with a plug installed in case you do not wish to use this feature.

Radiator is packaged well with bubble wrap before shipping.

Depending on your air to water intercooler setup, these can be used for 600-1200 HP.

Could also be used as a radiator for small-engine or some drag racing applications.

Air to Water Radiator

Review Summary

5.0 (based on 1 reviews)
100% of respondents would recommend this to a friend.
Write a Review
Reviewed by 1 customers Sort By:
By: graybeard47

From: California
5.0 Takes Care Of My Supercharged 74 Nova 2018-04-23
Comments about Water to Air Intercooler Radiator - 12x12x2 (Type 117):
Was having space issues with the limited area for an intercooler that needed to fit alongside a hefty transmission cooler. The intercooler has not been a disappointment in keeping the supercharger fluid cool on a LSA 6.2L. motor. In stop and go traffic the temperature rises some but drops once you are going. As I use the car in the blistering California hot summers, an electric fan will be added as circumstances arise. The cooling ability clearly speaks for the quality of the unit.
BOTTOM LINE? Yes, I would recommend this to a friend Was this review helpful? Yes / No
